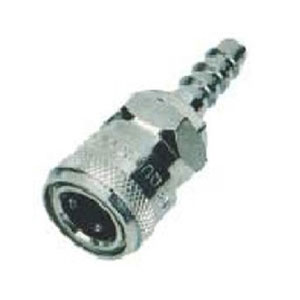

Quick Coupler C SH
|

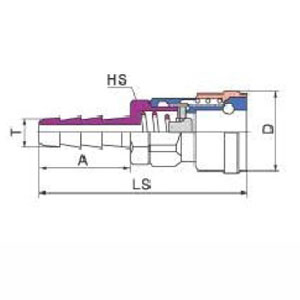

Model |
Adapter |
A |
D |
HS |
LS |
T |
|
SH-10 |
1/4HOSE |
26 |
26 |
19H |
66.8 |
7 |
|
SH-20 |
5/6HOSE |
26 |
26 |
19H |
66.8 |
9 |
|
SH-30 |
3/8HOSE |
26 |
26 |
19H |
66.8 |
11 |
|
SH-40 |
1/2HOSE |
26 |
26 |
21H |
66.8 |
13.5 |
|
How to order |
|||
|
S |
M |
- |
20 |
|
S: Socket P: plug |
M: male F: female H: tails P: coupler |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
|
|
Media |
Air |
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
|
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
|
Ambient &fluid temperature |
0-60oc |
|
Recommended tubes |
Urethane tube, nylon tube |
|
Material |
Zinc alloy |
