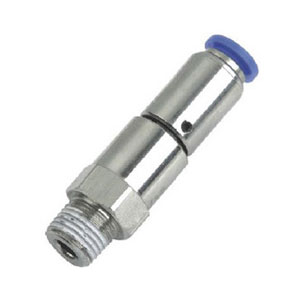

NHRC
|
Dimension |
|||||||||
|
model |
ΦD |
R |
F |
C |
P1 |
P2 |
A |
H |
PRM |
|
NHRC04-M5 |
4 |
M5 |
21.7 |
16 |
10.4 |
11 |
3.5 |
12 |
1500 |
|
NHRC04-M6 |
4 |
M6 |
21.7 |
16 |
10.4 |
11 |
4.5 |
12 |
1500 |
|
NHRC04-01 |
4 |
R1/8 |
21.7 |
16 |
10.4 |
11 |
8 |
12 |
1500 |
|
NHRC06-01 |
6 |
R1/8 |
24 |
17 |
13 |
15 |
8 |
17 |
1200 |
|
NHRC06-02 |
6 |
R1/4 |
24 |
17 |
13 |
15 |
11 |
17 |
1200 |
|
NHRC08-01 |
8 |
R1/8 |
24.3 |
18.5 |
14.4 |
15 |
8 |
17 |
1200 |
|
NHRC08-02 |
8 |
R1/4 |
24.3 |
18.5 |
14.4 |
15 |
11 |
17 |
1200 |
|
NHRC10-03 |
10 |
R3/8 |
29.3 |
21 |
18 |
20 |
12 |
24 |
1000 |
|
NHRC10-04 |
10 |
R1/2 |
27.3 |
21 |
18 |
20 |
15 |
24 |
1000 |
|
NHRC12-03 |
12 |
R3/8 |
32 |
22.5 |
21.8 |
20 |
12 |
24 |
1000 |
|
NHRC12-04 |
12 |
R1/2 |
32 |
22.5 |
21.8 |
20 |
15 |
24 |
1000 |
|
Order code |
|||
|
NHRC |
8 |
- |
20 |
|
Series code |
4 6 8 10 1214 16 |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
|
Specification |
|||||||
|
Media |
Air |
||||||
|
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
||||||
|
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
||||||
|
Ambient &fluid temperature |
0-60oc |
||||||
|
Recommended tubes |
Urethane tube, nylon tube |
||||||
|
Material |
Zinc alloy |
||||||
|
4 |
6 |
8 |
10 |
12 |
|||
|
NRC,NRL |
500 |
500 |
400 |
300 |
250 |
||
|
NHRC,NHRL |
1500 |
1200 |
1200 |
1000 |
1000 |
||
