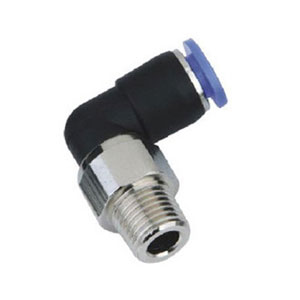

NRL

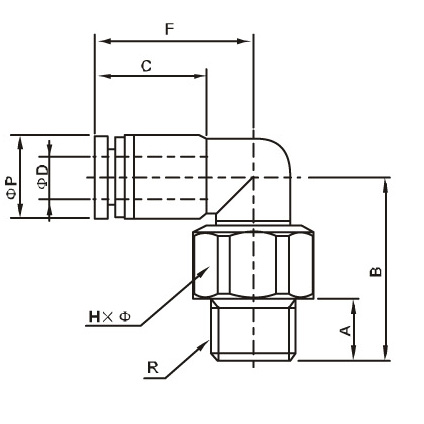

Dimension |
||||||||
model |
ΦD |
R |
F |
C |
A |
B |
H |
RPM |
NRL04-M5 |
4 |
M5 |
20.2 |
16 |
3.5 |
20.7 |
12*13 |
500 |
NRL04-M6 |
4 |
M6 |
20.2 |
16 |
4.5 |
21.2 |
12*13 |
500 |
NRL04-01 |
4 |
R1/8 |
20.2 |
16 |
8 |
22 |
12*13 |
500 |
NRL06-M5 |
6 |
M5 |
22.9 |
17 |
3.5 |
24.2 |
14*15 |
500 |
NRL06-M6 |
6 |
M6 |
22.9 |
17 |
4.5 |
24.2 |
14*15 |
500 |
NRL06-01 |
6 |
R1/8 |
22.9 |
17 |
8 |
24.2 |
14*15 |
500 |
NRL06-02 |
6 |
R1/4 |
22.9 |
17 |
11 |
26.2 |
14*15 |
500 |
NRL08-01 |
8 |
R1/8 |
25.9 |
18.5 |
8 |
30.6 |
17*18 |
400 |
NRL08-02 |
8 |
R1/4 |
25.9 |
18.5 |
11 |
30.6 |
17*18 |
400 |
NRL08-03 |
10 |
R3/8 |
25.9 |
18.5 |
12 |
30.6 |
17*18 |
400 |
NRL10-03 |
10 |
R3/8 |
29.8 |
21 |
12 |
35.3 |
22*24 |
300 |
NRL10-04 |
10 |
R1/2 |
29.8 |
21 |
15 |
36.3 |
22*24 |
300 |
NRL12-03 |
12 |
R3/8 |
32.7 |
22.5 |
12 |
40.5 |
24*26 |
250 |
NRL12-04 |
12 |
R1/2 |
32.7 |
22.5 |
15 |
40.5 |
24*26 |
250 |
How to order |
|||
NRL |
8 |
- |
20 |
Series code |
Tube size 4 6 8 10 12 14 16 |
|
Port size 01:1/8" 02:1/4" 03:/3/8" 04:1/2" |
Specification |
|||||||
Media |
Air |
||||||
Proof pressure |
1.32Mpa(1.35kgf/cm2) |
||||||
Pressure range |
0-0.9Mpa(0-9.2kgf/cm2) |
||||||
Ambient &fluid temperature |
0-60oc |
||||||
Recommended tubes |
Urethane tube, nylon tube |
||||||
Material |
Zinc alloy |
||||||
4 |
6 |
8 |
10 |
12 |
|||
NRC,NRL |
500 |
500 |
400 |
300 |
250 |
||
NHRC,NHRL |
1500 |
1200 |
1200 |
1000 |
1000 |
||
