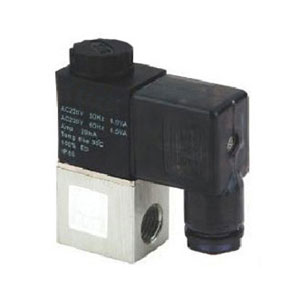

Direct Acting Solenoid Valve 2V







Order code

2V

025

-

08

AC220V

2/2 way

Solenoid valve

Orifice size

025:2.5mm



Port size

06:1/8"

06:1/4"





Voltage

DC12V

DC24v

AC24V50/60Hz

AC110V50/60Hz

AC220V50/60Hz

AC380V50/60Hz







specification

Model

2V025-06

2V025-08

Fluid

Air(filtered through 40u filter element)

Action

Direct acting type

Type

Normally closed type

Effective area(mm2)

1.2

CV Value

0.23

Port size

1/8"

1/4"

Viscosity limit

Under 20CST

Operating pressure

0-8.0kgf/cm2

Proof pressure

10kgf/cm2

Ambient & fluid temperature

-5~60oC

Voltage range

±10

Weight(kg)





Main parts material

Body

Aluminum alloy

Seal

NBR
