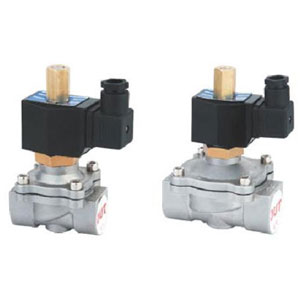

Direct Acting Solenoid Valve 2WBK







Order code

2WBK

160

-

10

AC110V

2/2 way

Solenoid valve

Orifice size

160:16mm

200:20mm

250:25mm

350:35mm

400:40mm

500:50mm



Port size

10:3/8”

15:1/2"

25:1"

35:11/4"

40:112"

50:2"

Voltage

DC12V

DC24V

AC24V 50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz







Specification

Model

2WBK

160-10

2WBK

160-15

2WBK

160-20

2WBK

160-25

2WBK

160-35

2WBK

160-40

2WBK

160-50

Fluid

Air(filtered through 40u filter element)

Action

Direct acting type

Type

Normally closed type

Effective area(mm2)

16

16

20

25

35

40

50

CV Value

4.8

4.8

7.6

12

24

29

48

Prot size

3/8"

1/2"

3/4"

1"

11/4"

11/2"

2"

Viscosity limit

Under 20CST

Operating pressure

Water and oil: 0-5.0kgf/cm2   Air0-7.0kgf/cm2

Proof pressure

10kgf/cm2

Ambient & fluid

temperature

-5~85oC

Voltage range

±10

Weight(kg)















Main parts material

body

Brass

seal

NBR
