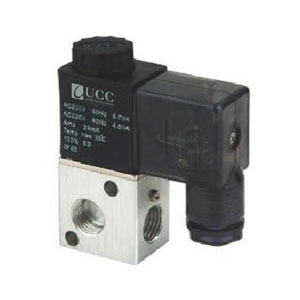

Direct Acting Solenoid Valve 3V1







Order code

3V1

-

06

AC220V



2/2 way

Solenoid valve



port size

M5:M5"

06:1/8"



Voltage

DC12V

DC24V

AC24V 50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz









Specification

Model

3V1-M5

3V1-06

Fluid

Air(filtered through 40u filter element)

Type

Direct acting type

Action

Normally closed type

Effective area(mm2)

2.5

CV Value

0.23

Port size

1/8"

1/4"

Viscosity limit

Under 20CST

Operating pressure

0-0.7kgf/cm2

Proof pressure

10kgf/cm2

Ambient & fluid temperature

-5-85oc

Voltage range

±10

Weight(kg)





Main parts material

Body

Aluminum alloy

Seal

NBR
