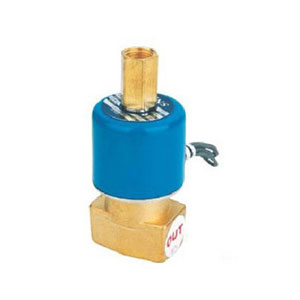

Direct Acting Solenoid Valve DC231-Y







Order code

2L

250

-

20

AC110V

2/2 way

Orifice size

170:17mm

200:17mm

250:25mm

350:35mm

400:40mm

500:50mm



Port size

10:3/8"

15:1/2"

20:3/4"

25:1"

35:11/4"

40:1/2"

50:2"

Voltage

DC12V

DC24V

AC24V 50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz







Specification

Model

2L170-10

2L170-15

2L200-20

2L250-25

2L350-35

2L400-40

2L500-50

Fluid

Air ,Water, Oil (filtered through 40 filter element)

Action

Direct acting type

Type

Normally closed type

Effective area(mm)

17

17

20

25

35

40

50

CV Value

4.8

4.8

4.8

12

20

20

48

Port size

3/8

1/2

3/4

1

1 1/4

1 1/2

2

Viscosity limit

Under 20CST

Operating pressure

1~15kgf/cm2

Ambient & fluid

temperature

-5~85 c

Voltage range

±10%

Weight(Kg)















Main parts

material

Body

Brass

Seal

EPDM

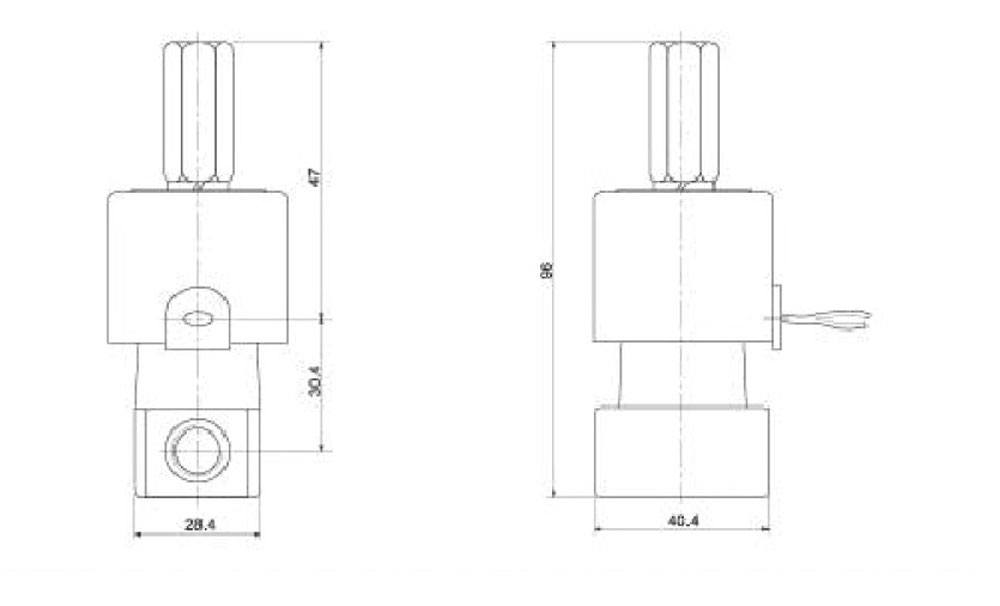

Dimension

Model

A

B

C

D

K

2L170-10

122.4

42

143.4

82

PT3/8"

2L170-15

122.4

42

143.4

82

PT1/2"

2L200-20

122.4

42

143.4

90.5

PT3/4"

2L250-25

130

52

156

111

PT1"

2L350-35

148

74

185

111

PT11/4"

2L400-40

147

74

185

111

PT11/2""

2L500-50

176

86

223

163

PT2”
