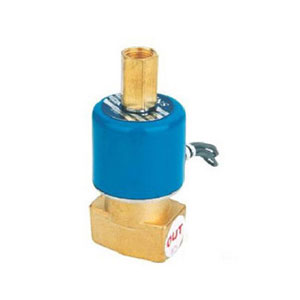

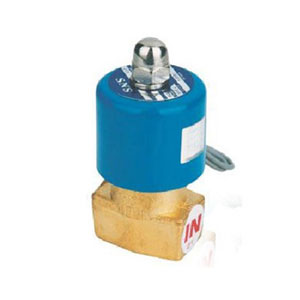

Direct Acting Solenoid Valve FB2E-V







Order code

FB

2

E

-

V

AC220V

Solenoid

valve

2/2 way

Port size

1/4"



Direct type

Voltage

DC12V

DC24V

AC24V 50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz







Specification

Model

FB2E-V

Fluid

Air ,Water ,Gas ,Oil (filtered through 40u filter element)

Action

Direct acting type

Type

Normally closed type

Effective area(mm2)

1.6

CV Value

0.23

Port size

1/4"

Viscosity limit

Under 20cst

Operating pressure

0-7.0kgf/cm2

Proof pressure

10kgf/cm2

Ambient & fluid temperature

-5-85oc

Voltage range

±10

Weight (kg)



Main parts material

Body

Brass

Seal

NBR
