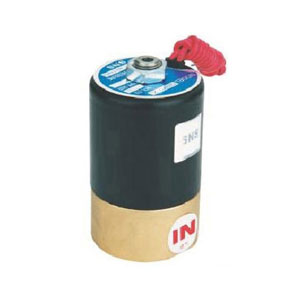

Direct Acting Solenoid Valve Q

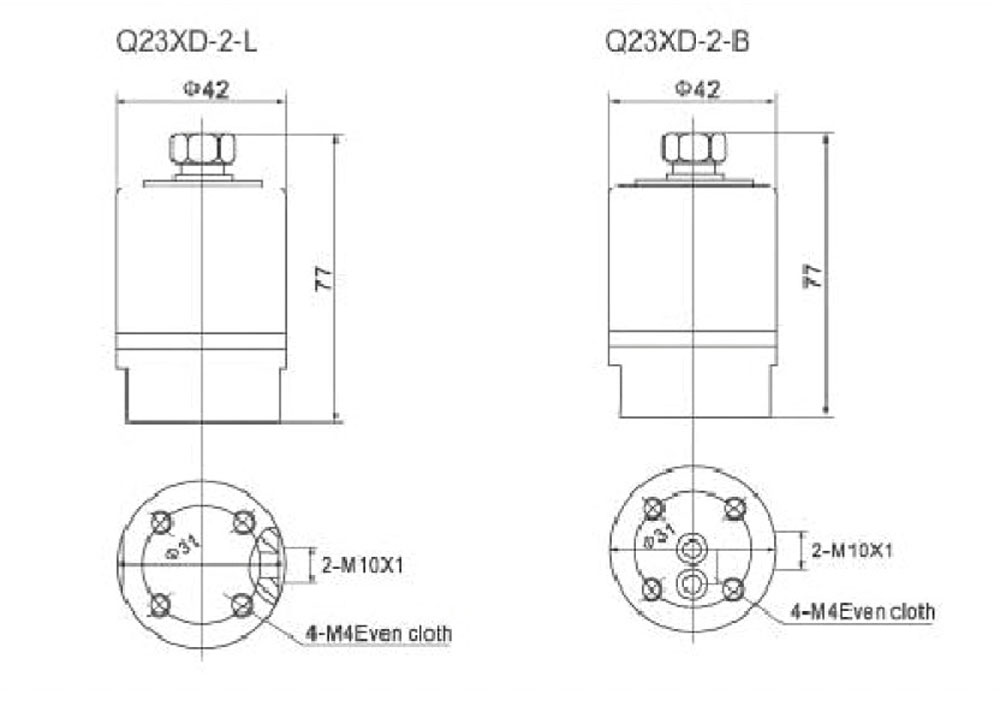

Order code

Q

23

X

D

2

B

Series

22:2/2way

23:2/3way





Direct

Acting type

Electrically

controlled

Orifice size

B :panel

Connecting

L: pipe

connecting







Specification

Model

Q23XD

Q22XD

Pressure range

0-0.8Mpa

Proof pressure

1.0Mpa

Tum-around time

0.04S

Leakage quantity

10cm2/min

Life

3 million cycles

Voltage

AC110V/AC220V/DC24V

Weight(kg)





Main parts material

Body

Aluminum alloy

Seal

NBR
