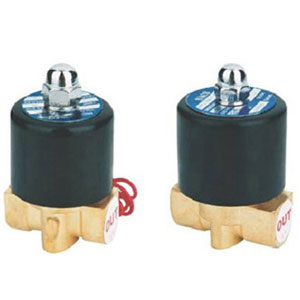

Direct Solenoid Valve 2W
Order code |
||||
2W |
025 |
- |
06 |
AC110V |
2/2 way Solenoid valve |
Orifice size 025: 040: |
|
Port size 06:1/8" 08:1/4" 10:3/8" |
Voltage DC12V DC24V AC24V50/60Hz AC110V50/60Hz AC220V50/60Hz AC380V50/60Hz |
Specification |
||||
Model |

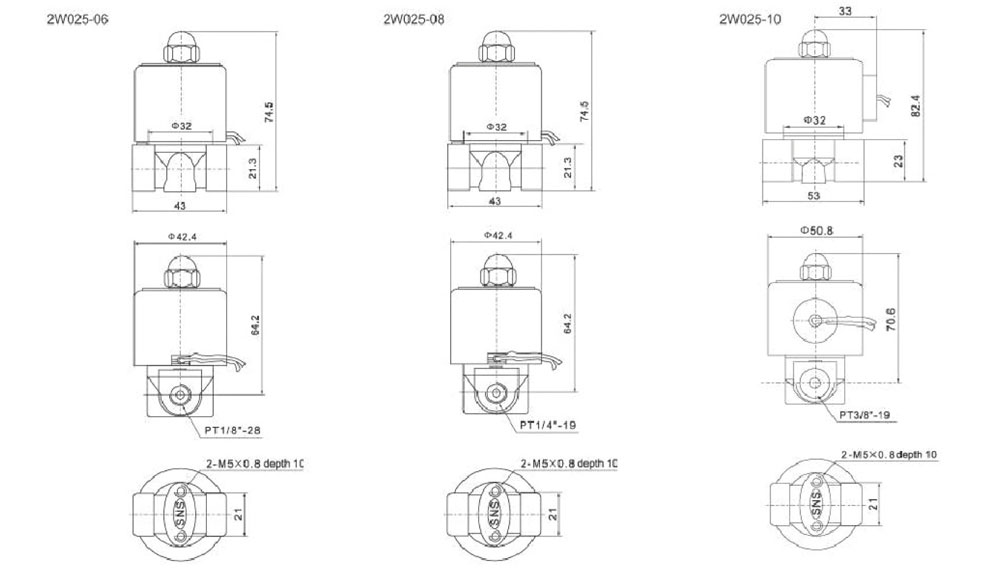

2W025-06 |
2W025-08 |
2W040-10 |
|
Fluid |
Air,Water,Gas,Oil(filtered through 40u filter element) |
|||
Action |
Direct acting type |
|||
Type |
Normally closed type |
|||
Effective area(mm2) |
0.25 |
2.5 |
4.0 |
|
CV Value |
0.23 |
0.23 |
0.60 |
|
Port size |
1/8" |
1/4" |
3/8" |
|
Viscosity limit |
Under 20CST |
|||
Operating pressure |
0-7.0kgf/cm2 |
|||
Proof pressure |
10kgf/cm2 |
|||
Ambient & fluid temperature |
-5~85oC |
|||
Voltage range |
±10% |
|||
Weight(kg) |
|
|
|
|
Main parts material |
body |
Brass |
||
seal |
NBR |
Order code |
||||
2W |
160 |
- |
10 |
AC110V |
2/2 way Solenoid valve |
Orifice size 160: 200: 250: 350: 400: 500: |
|
Port size 10:3/8" 15:1/2" 20:3/4" 25:1 35:11/4" 40:11/2" 50:2” |
Voltage DC12V DC24V AC24V50/60Hz AC110V50/60Hz AC220V50/60Hz AC380V50/60Hz |
Specification |
||||||||
Model |
2w160-10 |
2w160-15 |
2w200-20 |
2w250-25 |
2w350-35 |
2w400-40 |
2w500-50 |
|
Fluid |
Air, Water, Gas, Oil(filtered though 40μ filter element) |
|||||||
Action |
Direct acting type |
|||||||
Action |
Normally closed type |
|||||||
Effective area(mm2) |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
|
CV value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Port size |
3/8" |
1/2" |
3/4" |
1" |
11/4" |
11/2" |
2" |
|
Viscosity limit |
Under 20CS |
|||||||
Operating pressure |
Water and oil: |
|||||||
Proof pressure |
10kgf/cm |
|||||||
Ambient & fluid temperature |
-5-85oc |
|||||||
Voltage range |
±10% |
|||||||
Weight(kg) |
|
|
|
|
|
|
|
|
Main parts material |
Body |
Brass |
||||||
Seal |
NBR |

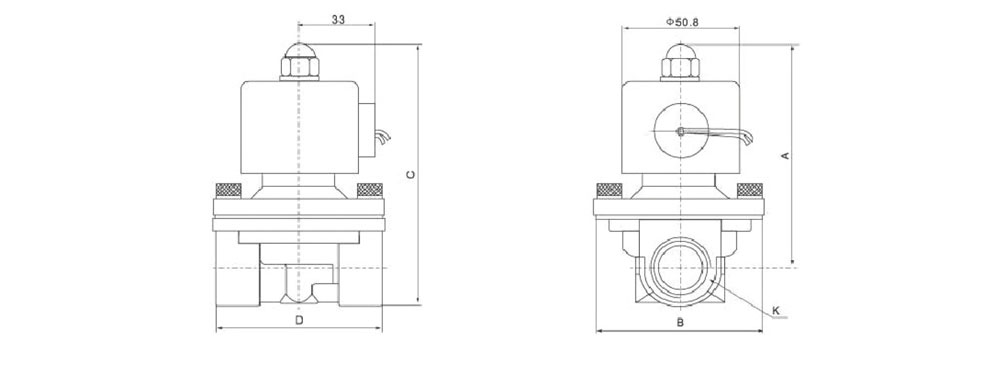

Dimension |
|||||
Model |
A |
B |
C |
D |
K |
2W160-10 |
93 |
57 |
106.5 |
69 |
PT1/2" |
2W160+15 |
93 |
57 |
106.5 |
69 |
PT1/2" |
2W200-20 |
100 |
57 |
116.4 |
73 |
PT3/4" |
2W250-25 |
105 |
73.5 |
126 |
99 |
PT1" |
2W350-35 |
142 |
95 |
172 |
123 |
PT11/4" |
2W400-40 |
172 |
95 |
172 |
123 |
PT11/2" |
2W500-50 |
172 |
123 |
209 |
168 |
PT2" |
