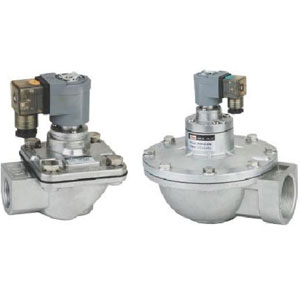

Direct Solenoid Valve SMF
|
Order code |
||||
|
SMF |
- |
Z |
- |
20P |
|
Solenoid Pulse valve |
|
Right-angle type |
|
Orifice size 20: 25: 35: 50: |
|
Specification |
|||||
|

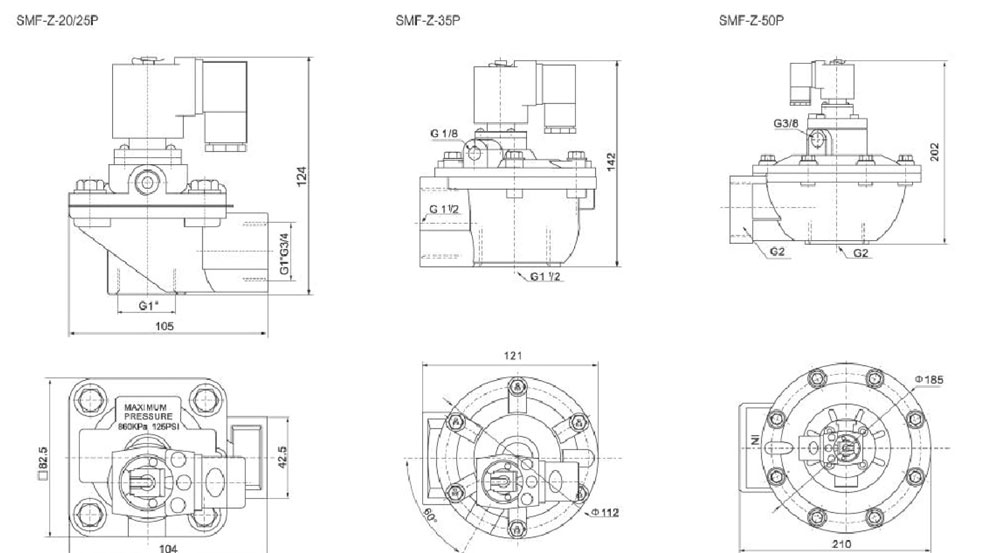

Model |
SMF-Z-20P |
SMF-Z-25P |
SMF-Z-35P |
SMF-Z-50P |
|
|
Operating pressure |
0.3-0.8kgf/cm2 |
||||
|
Ambient &fluid temperature |
-5-60oc |
||||
|
Relative humidity |
≤80% |
||||
|
Fluid |
Clean Air |
||||
|
Voltage |
AC110V/AC220V/DC24V |
||||
|
Diaphragm life |
Over one million cycles |
||||
|
Effective area(mm2) |
Φ20 |
Φ20 |
Φ35 |
Φ50 |
|
|
Port size |
3/4" |
1" |
11/2" |
2" |
|
|
Weight(kg) |
|
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
|||
|
Seal |
NBR |
||||
