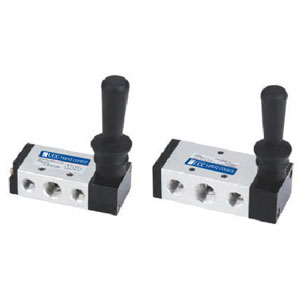

Hand Control Valve 3H 4H Series
|
Order code |
||||
|
4H |
2 |
20 |
- |
08 |
|
3H:2/3 way hand Control valve 4h:2/5 way hand Control valve |
Series 1:100 series 2:200series 3:300series 4:400series |
Position 10:Single head Double position |
|
Port size 06:1/8 O8:1/4 10:3/8 15:1/2 |
|
Specification |
|||||
|
Model |
4H110-06 |
3H210-08 4H210-08 |
3H310-10 4H310-10 |
3H410-15 4H410-15 |
|
|
Fluid |
Air (filtered through 40u filter element) |
||||
|
Action |
Direct acting type |
||||
|
Effective area(mm2) |
16(CV=0.89) |
16(CV=0.89) |
25(CV=0.89) |
30(CV=0.89) |
|
|
Port size |
1/8" |
1/4" |
3/8" |
1/2" |
|
|
Operating pressure |
0-8.0kgf/cm2 |
||||
|
Ambient & fluid temperature |
0-60oC |
||||
|
Lubrication |
Not required |
||||
|
Operating angle |
±15 |
||||
|
Weight(kg) |
|
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
|||
|
Seal |
NBR |
||||
|

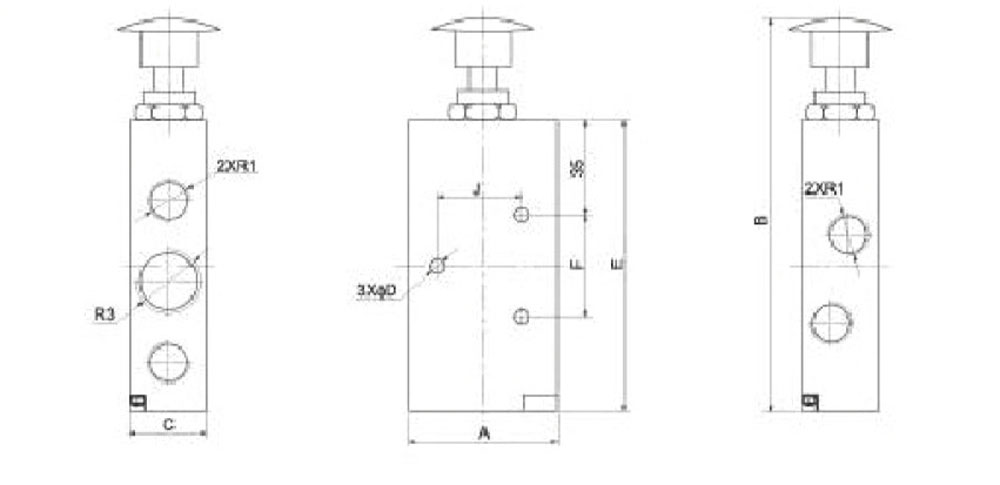

Dimension |
||||||||||
|
Model |
фD |
A |
B |
C |
E |
F |
J |
R1 |
R2 |
R3 |
|
4H110-06 |
|
|||||||||
|
4H210-08 |
4 |
35 |
76.3 |
22 |
94.5 |
21 |
21 |
R1/4 |
R1/4 |
R3/8 |
|
4H310-10 |
4 |
40 |
92 |
27 |
100 |
28 |
28 |
R3/8 |
R3/8 |
R3/8 |
|
4H410-15 |
5.5 |
50 |
124 |
34 |
105 |
28.2 |
34.6 |
R3/8 |
R3/8 |
R3/8 |
