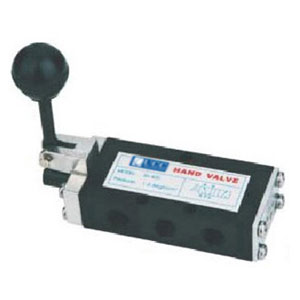

Hand Control Valve SH Series
|
Order code |
|||
|
SH4 |
- |
02 |
A |
|
2/5 way hand Control valve |
|
Port size 02:1/4" 03:1/8" |
Nil: fixed type A: spring return type |
|
Specification |
|||||
|
Model |
SH-402 |
SH |
SH-403 |
SH |
|
|
Fluid |
Air(filtered through 40u filter element) |
||||
|
Action |
Direct acting type |
||||
|
Port size |
1/4" |
3/8" |
|||
|
Operating pressure |
0-8.0kgf/cm2 |
||||
|
Ambient &fluid temperature |
0-60oc |
||||
|
Lubrication |
Not required |
||||
|
Operating angle |
±15 |
||||
|
Weight(kg) |
|
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
|||
|
Seal |
NBR |
||||
