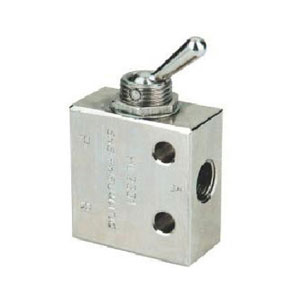

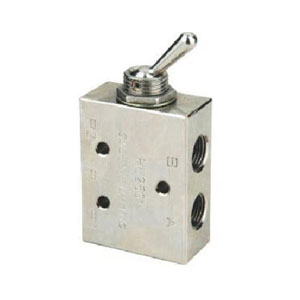

Knob Switch HL Series
|
Order code |
||
|
HL |
23 |
01 |
|
Series code |
23 2/3 way 25 2/5 way |
Port size 01:1/8" |
|
Specification |
|||
|
Model |
HL-2301 |
HL-2501 |
|
|
Fluid |
Air(filtered through 40u filter element) |
||
|
Action |
Direct acting type |
||
|
Port size |
1/8" |
||
|
Operating pressure |
0-0.8kgf/cm2 |
||
|
Ambient & fluid temperature |
0-60oc |
||
|
Lubrication |
Not required |
||
|
Weight (kg) |
|
||
|
Main parts material |
Body |
Aluminum alloy |
|
|
Seal |
NBR |
||
