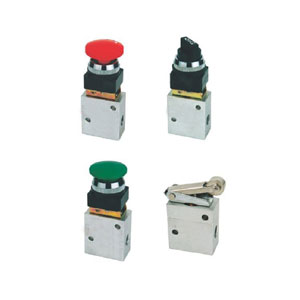

Mechanical Valve JM Series
|
Order code |
||
|
JM |
- |
05 |
|
Series code |
|
Head control type O5:selector 06:push button 07:roller |
|
Specification |
|||||
|
Model |
JM-05 |
JM-06 |
JM |
JM-07 |
|
|
Fluid |
Air(filtered through 40u filter element) |
||||
|
Operating pressure |
0-0.8kgf/cm2 |
||||
|
Ambient & fluid temperature |
0-70oc |
||||
|
Port size |
1/4" |
||||
|
Valve type |
2/3way |
||||
|
Weight(kg) |
|
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
|||
|
Seal |
NBR |
||||
