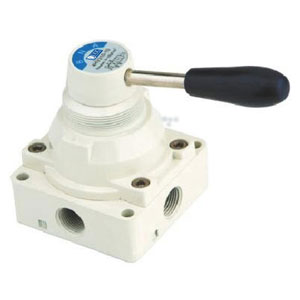

Rotary Lever Valve 4HV Series
Order code |
|||||
4HV |
2 |
30 |
- |
06 |
S |
Rotary lever valve |
Series 2:2series 3:3series 4"4series |
Position &port 10:2/4way 30:3/4way |
|
Port size 06:1/8" 08:1/4" 10:3/8" 15:1/2" 20"3/4" |
Mounting type Nil: valve Body mounting S: panel mounting |
Specification |
|||||||
Model |
4HV2□□-06 |
4HV2□□-08 |
4HV3□□-08 |
4HV3□□-10 |
4HV4□□-15 |
4HV4□□-20 |
|
fluid |
Air(filtered through 40μfilter element) |
||||||
Valve type |
4/3 way 4/2 way |
||||||
Port size |
1/8"" |
1/4" |
1/4" |
3/8" |
1/2" |
3/4" |
|
Effective area(mm2) |
14(0.78) |
16(0.89) |
30(1.67) |
33(1.83) |
88(4.89) |
95(5.27) |
|
Pressure range |
0-10kgf/cm2 |
||||||
proof pressure |
15kgf/cm2 |
||||||
Ambient & fluid temperature |
5-60oc |
||||||
Operating angle |
90oc |
||||||
Weight(kg) |
|
|
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
|||||
Seal |
Nylon |

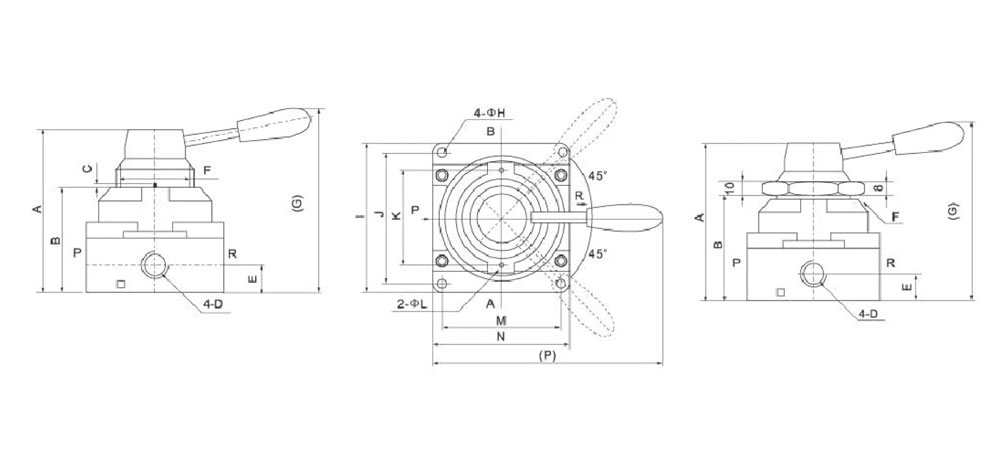

Dimension |
|||||||||||||||
Model |
A |
B |
C |
D |
C |
D |
G |
H |
I |
J |
K |
L |
M |
N |
P |
4HV2□□-06 |
72.6 |
45 |
1.5 |
Pt1/8 |
11.5 |
11.5 |
M34*1.5 |
92.5 |
62 |
62 |
40 |
3 |
49 |
62 |
120 |
4HV2□□-08 |
72.6 |
45 |
1.5 |
Pt1/4 |
11.5 |
11.5 |
M34*1.5 |
92.5 |
62 |
62 |
40 |
3 |
49 |
62 |
120 |
4HV3□□-08 |
88.5 |
56 |
1.5 |
Pt1/4 |
13.5 |
13.5 |
M40*1.5 |
104 |
74 |
74 |
51 |
3 |
62 |
74 |
140 |
4HV3□□-10 |
88.5 |
56 |
1.5 |
Pt3/8 |
13.5 |
13.5 |
M40*1.5 |
104 |
74 |
74 |
51 |
3 |
62 |
74 |
140 |
4HV4□□-15 |
110.3 |
72 |
2 |
Pt1/2 |
18 |
18 |
M52*1.5 |
126 |
102 |
102 |
64 |
3 |
81 |
94 |
160 |
4HV4□□-20 |
110.3 |
72 |
2 |
Pt3/4 |
18 |
19 |
M52*1.5 |
126 |
102 |
102 |
64 |
3 |
81 |
94 |
160 |
