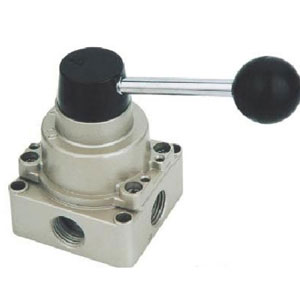

Rotary Lever Valve HV Series
|
Order code |
||
|
HV |
- |
02 |
|
Series code |
|
Port size 02:1/4" 03:3/8" 04:1/2" |
|
specification |
||||
|
Model |
HV-02 |
HV-03 |
HV-04 |
|
|
Fluid |
Air(filtered through 40μfilter element) |
|||
|
Action |
Direct acting type |
|||
|
Port size |
1/4" |
3/8" |
1/2" |
|
|
Operating pressure |
0-8.0kgf/cm2 |
|||
|
Ambient & fluid temperature |
0-60oc |
|||
|
Lubrication |
Not required |
|||
|
Weight(kg) |
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
||
|
seal |
NBR |
|||
