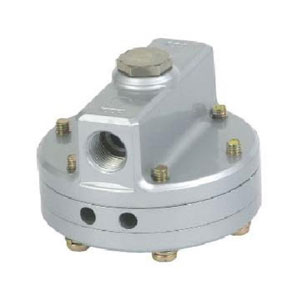

Increasing Speed Valve IL100 Series
|
Order code |
|
|
IL100 |
02 |
|
Series code |
Port size 02:1/4" 03:3/8" |
|
Specification |
||
|
Model |
IL 100-02 |
IL 100-03 |
|
Operating pressure |
Max.099Mpa |
|
|
Signal pressure |
Max.0.7Mpa |
|
|
Output pressure |
Max.0.7Mpa |
|
|
Rated flow |
600 e/min |
|
|
Consumption flow |
Less 3 e/min |
|
|
Slow-moving phenomenon |
1% |
|
|
CV value |
1.1 |
|
|
Ambient & fluid temperature |
-5-60oc |
|
|
Port size |
1/4" |
|
|
Bracket(optical) |
261022 |
3/8" |
|
Weight(kg) |
|
|
|
Main parts material |
|
|
