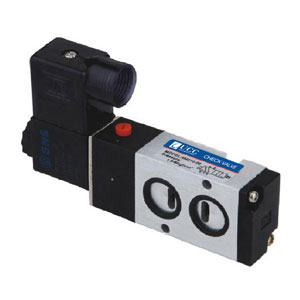

Pilot Solenoid Valve 4M







Order code

4M

4

10

-

15

AC110V

series code

2/5 way

Type code

1:100serie

2:200serie

3:300serie

4:400serie



Coil

10:2/5





Port size

M5: M5 0.8

06: 1/8

08: 1/4

10: 3/8

15: 1/2

Voltage

DC12V

DC24V

AC24V 50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz







Specification

Model

4M110

-M5

4M120

-M5

4M110

-06

4M110

-M56

4M110

-M5

4M110

-M5

4M110

-M5

4M110

-M5

4M110

-M5

4M110

-M5

4M110

-M5

4M110

-M5

Fluid

Air

Action

Intemally piloted acting type

Valve type

2/5way

Effective area (mm2)

5.5mm

2(CV=0.31)

12mm2

(CV=0.67)

14mm2

(CV=0.78)

16mm2

(CV=0.89)

25mm2

(CV=1.4)

30mm2

(CV=1.68)

Port size

=        =M5

=       =PT1/8

=       =PT1/8

= PT1/4   =PT/8

=       =PT1/4

=PT3/8    =PT1/4

Lubrication



Operating pressure

0.15~0.8Mpa(21-114Psi)

Proof pressure

1.2Mpa(170Psi)

Ambient & fluid

temperature

-5-60(23~140f)

Voltage range

-5%~+10%

Power consumption

AC:2.5VA DC:2.5W

AC:3.5VA DC:2.5W

Insulation grade

F grade

Protection

IP65(DIN40050)

Connection

Lead wire type or  terminal type

Max frequency

4 cycle/sec

Min response time

0.05 Sec

Weight(g)

120g

175g

120g

175g

220g

320g

220g

320g

310g

400g

310g

400g

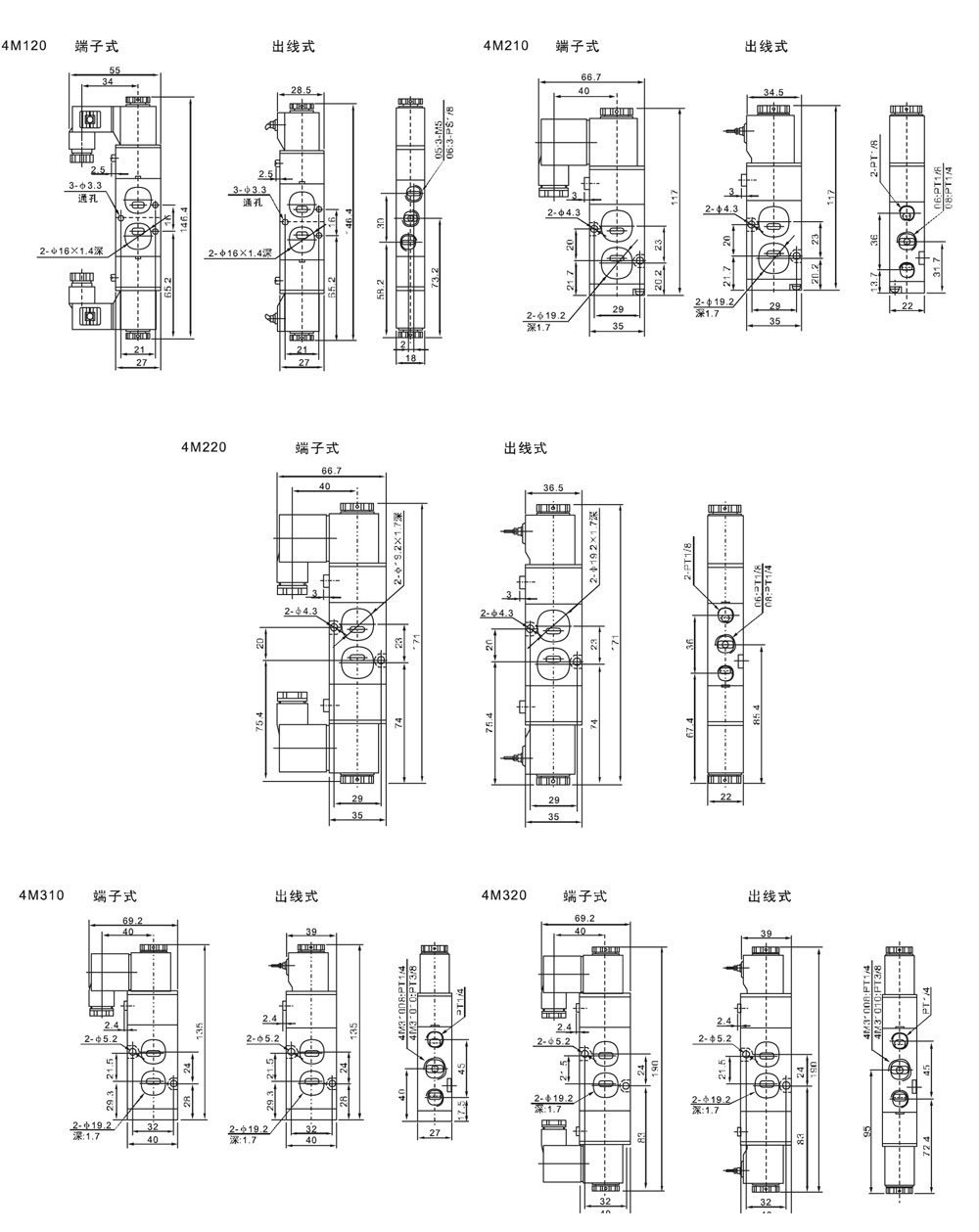

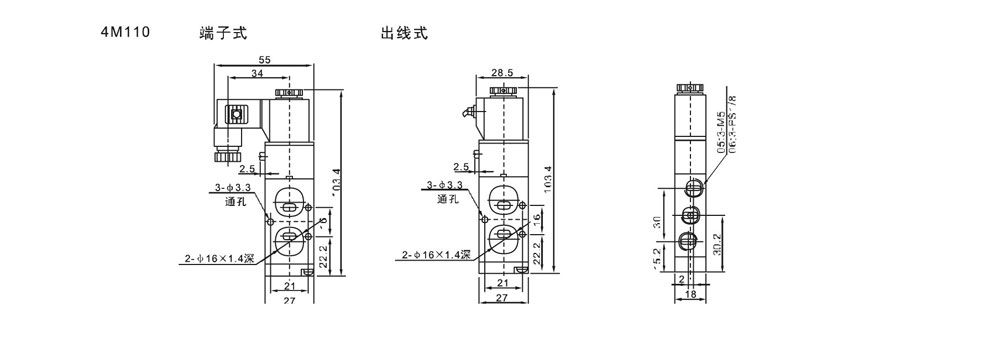

Main parts

material

Body

Aluminum alloy

Seal

NBR
