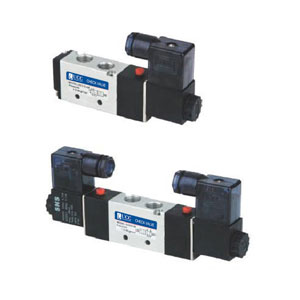

Pilot Solenoid Valve 4V2 Air Valve 4A2

Order code

4V/4A

AC110V

Series code

V: solenoid valve

A: air valve

Series

2:200series

Position & coil

10:2/5 way single electrical control

20:2/5 way single electrical control

30C:3/5 way(midst closed type) single electrical control

30E:3/5 way(midst closed type) single electrical control

30P:3/5 way(midst closed type) single electrical control

Prot size

06:1/8"

08:1/4"

Voltage

DC12V

DC24V

AC24V 50/60Hz

AC110V 50/60Hz

AC220V 50/60Hz

AC380V 50/60Hz

Specification
Model		4V210 -06 4A210 -06	4V220 -06 4A220 -06	4V230C -06 4A230C -06	4V230E -06 4A230E -06	4V230P -06 4A230P -06	4V210 -08 4A210 -08	4V220 -08 4A220 -08	4V230C -08 4A230C -08	4V230E -08 4A230E -08	4V230P -08 4A230P -08
Fluid		Air(filtered through 40u filter element)
Action		Intemally piloted acting type
Valve type		2/5way		3/5way			2/5way		3/5way
Effective area(mm²)		14mm²(CV=0.78)		12mm²(CV=0.40)			16mm²(CV=0.67)		12mm²(CV=0.67)
Port size		In=out=exhaust=M5 "					In=out=exhaust=1/8"
Lubrication		Not required
Operating pressure		1.5-8.0kgf/cm²
Proof pressure		10.5kgf/cm²
Ambient & fluid temperature		5-60^oc
Voltage range		±10
Power consumption		AC:4.5W DC:3.0W
Insulation grade		F grade
Protection		IP65(DIN40050)
Connection		Lead wire type or terminal type
Max. frequency		5 cycle/sec.
Min. response time		0.05sec.
Weight (kg)		220g	320g	400g	400g	400g	200g	320g	400g	400g	400g
Main parts material	body	Aluminum alloy
	seal	NBR
