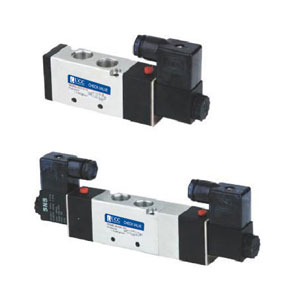

Pilot Solenoid Valve 4V3 Air Valve 4A3
Order code |
|||||
4V/ |
3 |
10 |
- |
08 |
AC110V |
Series code V: solenoid valve A: air valve |
Series 3:300series |
Position & coil 10:2/5 way single electrical control 20:2/5 way single electrical control 30E:3/5 way(midst closed type) single electrical control 30P:3/5 way(midst closed type) single electrical control |
|
Prot size 08:1/4" 10:3/8" |
Voltage DC12V DC24V AC24V 50/60Hz AC110V 50/60Hz AC220V 50/60Hz AC380V 50/60Hz |
Specification |
|||||||||||
Model |
4V310 -08 -08 |
4V310 -08 -08 |
4V -08 -08 |
4V330E -08 -06 |
4V330P -08 -08 |
4V310 -10 -10 |
4V220 -08 -08 |
4V -10 -10 |
4V330E -10 -10 |
4V330P -10 -10 |
|
Fluid |
Air(filtered through 40u filter element) |
||||||||||
Action |
Intemally piloted acting type |
||||||||||
Valve type |
2/5way |
3/5way |
2/5way |
3/5way |
|||||||
Effective area(mm2) |
|
|
|
|
|||||||
Port size |
In=out=exhaust=1/4 " |
In=out3/8"Exhaust=1/4" |
|||||||||
Lubrication |
Not required |
||||||||||
Operating pressure |
1.5-8.0kgf/cm2 |
||||||||||
Proof pressure |
10.5kgf/cm2 |
||||||||||
Ambient & fluid temperature |
5-60oc |
||||||||||
Voltage range |
±10 |
||||||||||
Power consumption |
AC:4.5W DC:3.0W |
||||||||||
Insulation grade |
F grade |
||||||||||
Protection |
IP65(DIN40050) |
||||||||||
Connection |
Lead wire type or terminal type |
||||||||||
Max. frequency |
5 cycle/sec. |
||||||||||
Min. response time |
0.05sec. |
||||||||||
Weight (kg) |
|
|
|
|
|
|
|
|
|
|
|
Main parts material |
body |
Aluminum alloy |
|||||||||
seal |
NBR |
