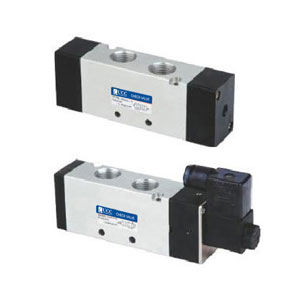

Pilot Solenoid Valve 4V4 Air Valve 4A4
|
Order code |
|||||
|
4V/ |
4 |
10 |
- |
08 |
AC110V |
|
Series code V: solenoid valve A: air valve |
Series 4:400series |
Position & coil 10:2/5 way single electrical control 20:2/5 way single electrical control 30E:3/5 way(midst closed type) single electrical control 30P:3/5 way(midst closed type) single electrical control |
|
Prot size 10:3/8" 15:1/2" |
Voltage DC12V DC24V AC24V 50/60Hz AC110V 50/60Hz AC220V 50/60Hz AC380V 50/60Hz |
|
Specification |
||||||
|
Model |
4V410-15 |
4V420-15 |
4V |
4V430E-15 |
4V430P-15 |
|
|
Fluid |
Air(filtered through 40u filter element) |
|||||
|
Action |
Intemally piloted acting type |
|||||
|
Valve type |
2/5way |
3/5way |
||||
|
Effective area(mm2) |
|
|
||||
|
Port size |
In=out=exhaust=1/2 " |
|||||
|
Lubrication |
Not required |
|||||
|
Operating pressure |
1.5-8.0kgf/cm2 |
|||||
|
Proof pressure |
10.5kgf/cm2 |
|||||
|
Ambient & fluid temperature |
5-60oc |
|||||
|
Voltage range |
±10 |
|||||
|
Power consumption |
AC:4.5W DC:3.0W |
|||||
|
Insulation grade |
F grade |
|||||
|
Protection |
IP65(DIN40050) |
|||||
|
Connection |
Lead wire type or terminal type |
|||||
|
Max. frequency |
5 cycle/sec. |
|||||
|
Min. response time |
0.05sec. |
|||||
|
Weight (kg) |
|
|
|
|
|
|
|
Main parts material |
body |
Aluminum alloy |
||||
|
seal |
NBR |
|||||
