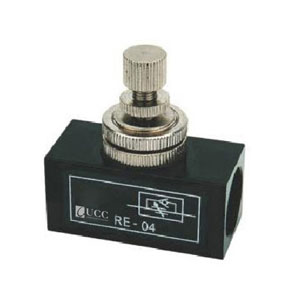

Speed Control Valve RE Series
|
Order code |
||
|
RE |
- |
01 |
|
Series code |
|
Port size 01:1/8" 02:1/4" 03:3/8" 04:1/2" |
|
Specification |
|||||
|
Model |
RE:01 |
RE:02 |
RE:03 |
RE:04 |
|
|
Fluid |
Air(filtered through 40u filter element) |
||||
|
Port size |
1/8" |
1/4" |
3/8" |
1/2" |
|
|
Proof pressure |
0-10kgf/cm2 |
||||
|
Ambient & fluid temperature |
0-70oc |
||||
|
Weight(kg) |
|
|
|
|
|
|
Main parts material |
Body |
Aluminum alloy |
|||
|
Seal |
NBR |
||||
|

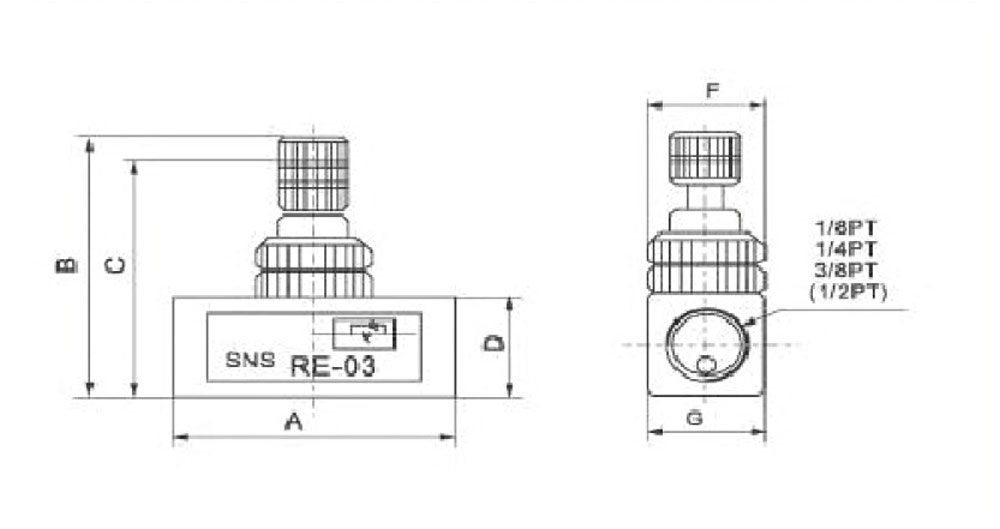

Dimension |
|||||||
|
Model |
A |
B |
C |
D |
E |
F |
G |
|
RE:01 |
46 |
48 |
44 |
11 |
19 |
19 |
19 |
|
RE:02 |
46 |
48 |
44 |
44 |
49 |
49 |
19 |
|
RE:03 |
56.4 |
63 |
53 |
12 |
25.5 |
24.7 |
25.5 |
|
RE:04 |
56.4 |
63 |
53 |
12 |
25.5 |
24.7 |
25.5 |
