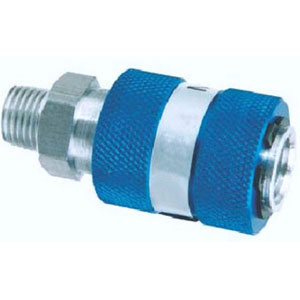

Spool Valve MS
|
Order code |
|||
|
MS |
- |
22 |
MF |
|
Series code |
|
Port size 22"1/4" 33:3/3" 44:1/2" |
Thread type MM:DOUOIL MALE MF: male and female FF: double female |
|
Specification |
||||
|
model |
MS-22MF/MM/FF |
MS-33MF/M/FF |
MS-44MF/MM/FF |
|
|
Fluid |
Air(filtered through 40u filter element) |
|||
|
Port size |
1/4" |
3/8" |
1/2" |
|
|
pressure |
0~10kgf/cm2 |
|||
|
Ambient& fluid temperature |
0~70oc |
|||
|
Weight(kg) |
|
|||
|
Main parts material |
Body |
Aluminum alloy |
||
|
Seal |
NBR |
|||
|

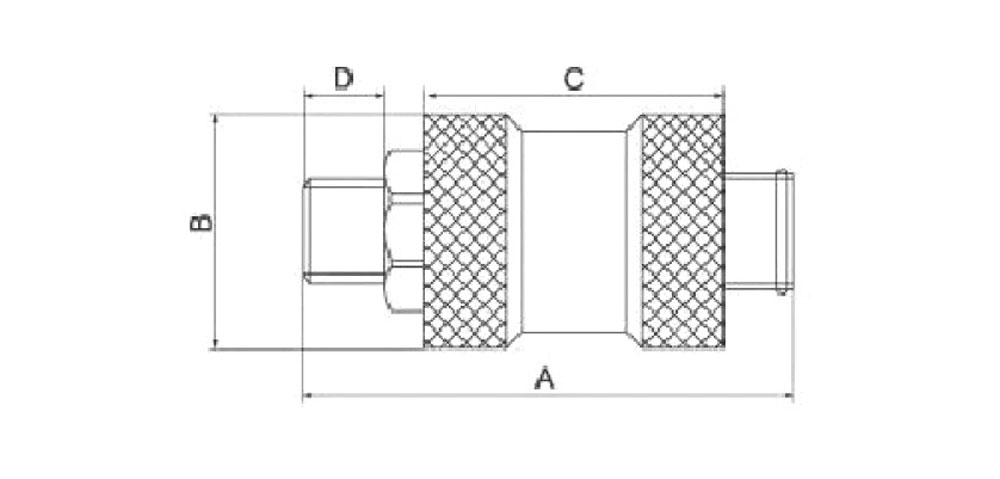

Dimension |
||||
|
Model |
A |
B |
C |
D |
|
MS-22MF |
59 |
26 |
32 |
11.3 |
|
MS-33MF |
59 |
31 |
32 |
11.3 |
|
MS-44MF |
91 |
39 |
49 |
12 |
